The ProDirector 7 – A top class industrial laser light projector
With the ProDirector 7, companies in many segments of industry gain decisive advantages when it comes to working quickly and with the highest precision. The ProDirector 7 projects its green laser beams from a fixed reference point, which can be under the ceiling or on a special construction. In doing so, it achieves a projection field for the laser of up to 80° degrees horizontally and 70° vertically for every direction in the room. Even a subsequent upgrade with the Laser pattern projectors in your production is thus no problem.
-
The ProDirector 7 is proven a thousand times over
-
A laserprojector positioning aid with inimitable precision
-
Simple and ingenious in daily use
-
In use worldwide in almost all countries and industry segments
-
Dust-tight and robust, perfect for almost any environment
SL Laser ProDirector 7
System specifications
Position Accuracy
±0.014“ (0.35 mm) at a distance of 15‘ over 17‘ x 17‘ (4.5 m x 4.5 m) area (equals to a 60° projection)
Field of View
Horizontal: max. 80°, Vertical: max. 70°
Laser
Green: 520-525 nm, FC-lasermodule
Laser Class 5 mW
International: Class 2M per IEC/EN 60825-1:2015-07, CE certification
USA: Class IIIa per 21CFR 1040 (CDRH)
Power Requirement
80-240 VAC 50/60 Hz
Dimensions
Length: 355 mm/18.90 “, Width: 120 mm/6.69 “, Height: 190 mm/11.42 “, Weight: 5,8 kg
ProDirector 7: Functioning as a 3D laser light projector for trade and industry
A computer-controlled laserprojector system with the sophisticated operator software ensures that the ProDirector 7 laser throws measuring points, lines and entire work plans onto the surfaces to be processed. Permanently installed or integrated into a rail system, the size or complexity of the free-forms, welding tables, workpieces, materials or different layers in the composite area no longer play a role. The dust-tight design of the ProDirector 7 proves to be just as reliably robust when working with wood as it is when working with precast concrete parts.
Each work step is predefined, and the execution by the employees can take place without tedious marking out, measuring, matching and rechecking. This not only reduces the working time, but also significantly minimises the error margins. Perfect for CNC applications of all kinds. For extremely large components, such as in the aerospace industry, the ProDirector 7 can also be installed as a compound system so that the entire area can be covered.

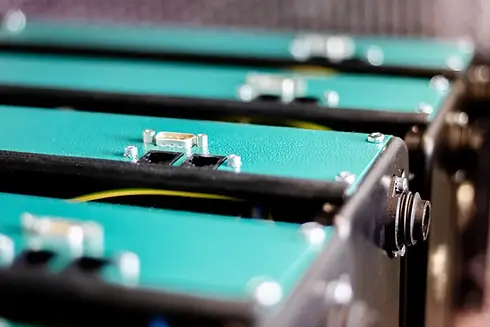

Performance description of the hardware
-
Precision high-speed scanner with push-pull output stages
-
Electronics in modern SMD technology.
-
Integrated embedded PC with 800 MHz ,4 GB memory.
-
Optimised receiver sensor of the reflection radiation
-
Data input RS232, RS485
-
Control lamps for mains voltage and information signal
-
Mains filter in the power supply
-
Switching power supply with an input voltage of 100-240 VAC
-
Industrial aluminium housing to IP54 with optimised surface for heat dissipation
-
Ambient temperature 5-45 degrees, power consumption approx. 70 VA
-
CE conformity marking, manual
Projektionslaser für den Rüsttisch
The 3D laser light projector ProDirector 7 – a solution for many problems
For all these reasons, the laser light projectors from SL Laser have made a well-known name for themselves over the last 25 years as precision devices in the laser template industry for making work easier, more precise and accelerating many work processes. Whether it is simple line guidance in 2D format for cutting and, for example, concrete shuttering, or the complex alignment of machines and workpieces, the 3D laser projectors from SL Laser are part of it today. Here, the ProDirector 7 clearly stands out both in the range of industries and in sales figures.
Starting with the aerospace industry with its highest precision requirements for metal processing, the 3D laser light projector ProDirector 7 can be found in almost every area of industry. Of course, this also applies to specialised crafts such as yacht and boat building and its fibre-reinforced plastics. The cost optimisation and quality increase that can be achieved with the 3D laser light projector ProDirector 7 make the investment a wise decision. Don’t leave these competitive advantages to other companies anymore. Play in front with a 3D laserprojector for your work processes and contact us!
דוגמאות ליישומים ופלחי תעשייה
עזרי התקנה למכונות CNC לעץ וכלי מדידה לבנייה בעץ להעברה ישירה של מיקומי הדיקור (Positioning) מבקרת הנתב (Router). כמערכת הנחיה אופטית למתארים (Contours) ויישור של אלמנטים כמו בלוקים להידוק (Press blocks). למיקום מעצורים, קווי מסמור וחיבורי מסמרים.
יישור על שולחנות ריתוך או מסבכי פלדה בתעשיית המתכת יישור חלקי עבודה מקובצי CAD בדיוק של מילימטר. חיסכון בזמן על ידי ביטול הצורך בשבלונות (Templates) פיזיות. הקרנה נוחה ביחס של 1:1 של מתארים ומיקומי מעצורים.
יישומי חומרים מרוכבים (Composite) לעיבוד רכיבי סיבים בתעשיית התעופה והחלל: עבור כנפיים, חלקי גוף המטוס ומדפי נחיתה (Landing flaps). בפורמולה 1: לתהליכי הנחת שכבות של יריעות סיבים (Composite mats). בבניית טורבינות רוח: באמצעות הקרנה מדויקת גם בגבהים רב ומרחקים גדולים.
מדידות והקרנות בתעשיית הבנייה במיקום תבניות וחיזוקים (Reinforcement) עבור חלקי בטון טרומיים. בשילוב עם מערכת הנחיה על גבי מערכות ייצור במשטחים נעים (Pallet circulation) עם שלבי עבודה משתנים. להקרנה של שרטוטי CAD על גבי רכיבים וחלקי עבודה.
הרכבה במרחב התלת-ממדי (3D) בבניית מטוסים: באמצעות הצבה מדויקת ביותר של אלפי חלקים קטנים. בבקרת איכות: באמצעות הקרנת מתארים על גבי רכיבים לבדיקת התאמה. בבניית סירות: באמצעות תצוגה מדויקת של מתארים וקימורים (Curvatures).
הקרנת שבלונות בעיבוד טקסטיל ביישור וחיתוך של שבלונות עור. לסימון מתארים של מפרשים או כדורים פורחים. לסימון מתארים של כיסויים סולאריים.
Universal: Examples of applications and industry segments
Set-up aids for CNC wood routers and measuring tool for timber construction For the direct transfer of positioning from the router control. As an optical guidance system for contours and alignment of e.g. press blocks For positioning stops and nail lines/nail ties.
Alignment on welding tables or steel trusses in the metal industry Alignment of workpieces from CAD accurate to the millimetre Time-saving elimination of templates Convenient 1:1 projection of contours and stop positions.
Composite applications for machining composite fibre components In the aerospace industry for wings, fuselage parts and landing flaps. There, as in Formula 1 for the laying processes of composite fibre mats In the construction of wind turbines through precise projection even at great heights.
Measurements and projections in the construction industry When positioning formwork and reinforcement for prefabricated concrete parts. In connection with a guidance system on a pallet circulation system with changing work steps For the projection of CAD drawings onto components and workpieces.
Assembly in the 3D area In aircraft construction through the most precise placement of thousands of small parts. In quality control through the projection of contours onto components In boat building through precise display of contours and curvatures
Template projection in textile processing In the alignment and cutting of leather templates For contouring sails or balloons For contouring solar covers
