Positioning lasers & projection lasers for composite applications
The geometry and dimensions of the layers play an important role in the processing of composite materials. The different properties must be precisely coordinated during the manufacturing process. The exact projection of the contours with the ProDirector 7 laser projector makes the work much easier and speeds up the entire process. The special SL3D software for composite applications provides indispensable services. Software-controlled projection in the production of fiber composite components, e.g. with carbon, minimizes typical errors. The entire process sequence ensures a profitable advantage.
Advantages for the composites industry
The required layer positioning sequence is stored in the software and perfectly mapped in the process
Prepregs can be laid without errors as the laser beam template indicates and specifies the exact positions
The time-consuming and tedious production of templates is not necessary. This saves a considerable amount of material and time
Protocols of the processes are stored electronically. This allows the projection to be supplemented with additional information
Typical areas of application for our lasers in the composite industry
ProDirector 7 is used for various processes in the composites industry to optimize development, production and assembly. In production preparation, laser beams facilitate the planning and layout of material cuts. Precise markings on composite materials allow exact positioning and alignment. Assembly instructions are projected directly onto the work surface, simplifying work and reducing sources of error.
Contours and dimensions are checked in quality control. For training purposes or design changes, complex assembly or manufacturing processes can be communicated visually without physical modifications.
Further information on the application in the composites industry

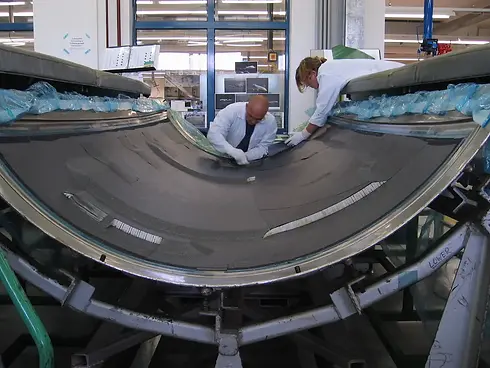

ProDirector 7 in the aerospace industry The system consisting of ProDirector 7 and SL3D software is specially tailored to the needs of the aerospace industry. In the production of composite materials, for example in the layup process, lasers show the exact position of each layer under software control. This is essential in the production of aircraft fuselages or wing components. This precision is essential for processing the complex geometry of the components. The engineers appreciate the integration of multi-projector systems with multitooling, the user-friendly operation and the complete process documentation required for the prescribed quality control.
Projection lasers & positioning lasers in the wind power industry The ProDirector 7 is used in the production of rotor blades for wind turbines. The precise projection, even from a great height, facilitates the joining of carbon fiber mats. The projection makes it possible to attach brackets, drill holes and markings. The parts can be precisely aligned when assembling the rotor blades. The ProDirector is indispensable in quality assurance and when measuring and assembling other subsystems. During repairs, laser projectors mark the damaged areas and enable more efficient repair processes. Our software is optimally adapted to the needs of manufacturers.
יישומי לייזר בהנדסת רכב ובניית ספינות השימוש בחומרים מרוכבים הולך וגובר בהנדסת רכב ובבניית ספינות, במיוחד בבניית יאכטות. מקרני הלייזר מייעלים את תהליכי החיבור של יריעות סיבים, למשל על ידי הקרנת קווי קידוח או חיתוך על משטחים של מכלולים מורכבים או אזורים קשי גישה. ייצוג חזותי של שינויי עיצוב הופך לאפשרי כבר במהלך הפיתוח. הנחה מדויקת של חומרים מרוכבים מאפשרת עובי שכבה אחיד ואיכות גבוהה לשמירה על שלמות מבנית. שלבי עבודה שונים מקושרים ומתועדים בו-זמנית. ניתן להתאים אישית את תוכנת ה-SL3D לפי דרישה.
Further information on the application in the composites industry
ProDirector 7 in the aerospace industry The system consisting of ProDirector 7 and SL3D software is specially tailored to the needs of the aerospace industry. In the production of composite materials, for example in the layup process, lasers show the exact position of each layer under software control. This is essential in the production of aircraft fuselages or wing components. This precision is essential for processing the complex geometry of the components. The engineers appreciate the integration of multi-projector systems with multitooling, the user-friendly operation and the complete process documentation required for the prescribed quality control.
Projection lasers & positioning lasers in the wind power industry The ProDirector 7 is used in the production of rotor blades for wind turbines. The precise projection, even from a great height, facilitates the joining of carbon fiber mats. The projection makes it possible to attach brackets, drill holes and markings. The parts can be precisely aligned when assembling the rotor blades. The ProDirector is indispensable in quality assurance and when measuring and assembling other subsystems. During repairs, laser projectors mark the damaged areas and enable more efficient repair processes. Our software is optimally adapted to the needs of manufacturers.
Laser applications in automotive engineering or shipbuilding Composite materials are increasingly being used in automotive engineering and shipbuilding, particularly for the construction of yachts. The laser projectors optimize the joining processes of composite fibre mats, for example by projecting drilling or cutting lines onto the surfaces of complex assemblies or hard-to-reach areas. A visual representation of design changes becomes possible during development. The precise layup of composite materials enables uniform layer thickness and quality for structural integrity. Different work steps are linked and documented simultaneously. The SL3D software can be customized on request.
